SANDA's 200 W DC solid state TEC air conditioner models are designed to cool your electronic and electrical controls, instruments, computer terminals, printers, telecommunications equipment, surveillance devices, cameras, laser and optical equipment and many other electronics in variety of environments. Our electronic cabinet cooler is designed for use with a wide range of enclosures and transit cases. Models are available for both indoor and outdoor use in DC power configurations. Thermoelectric Coolers feature corrosion-resistant stainless steel construction. All are available with a variety of options. *Three working modes:cooling & heating & standby. *No compressor, refrigerant or filters *Intelligent built-in controller
Thermoelectric air conditioner description

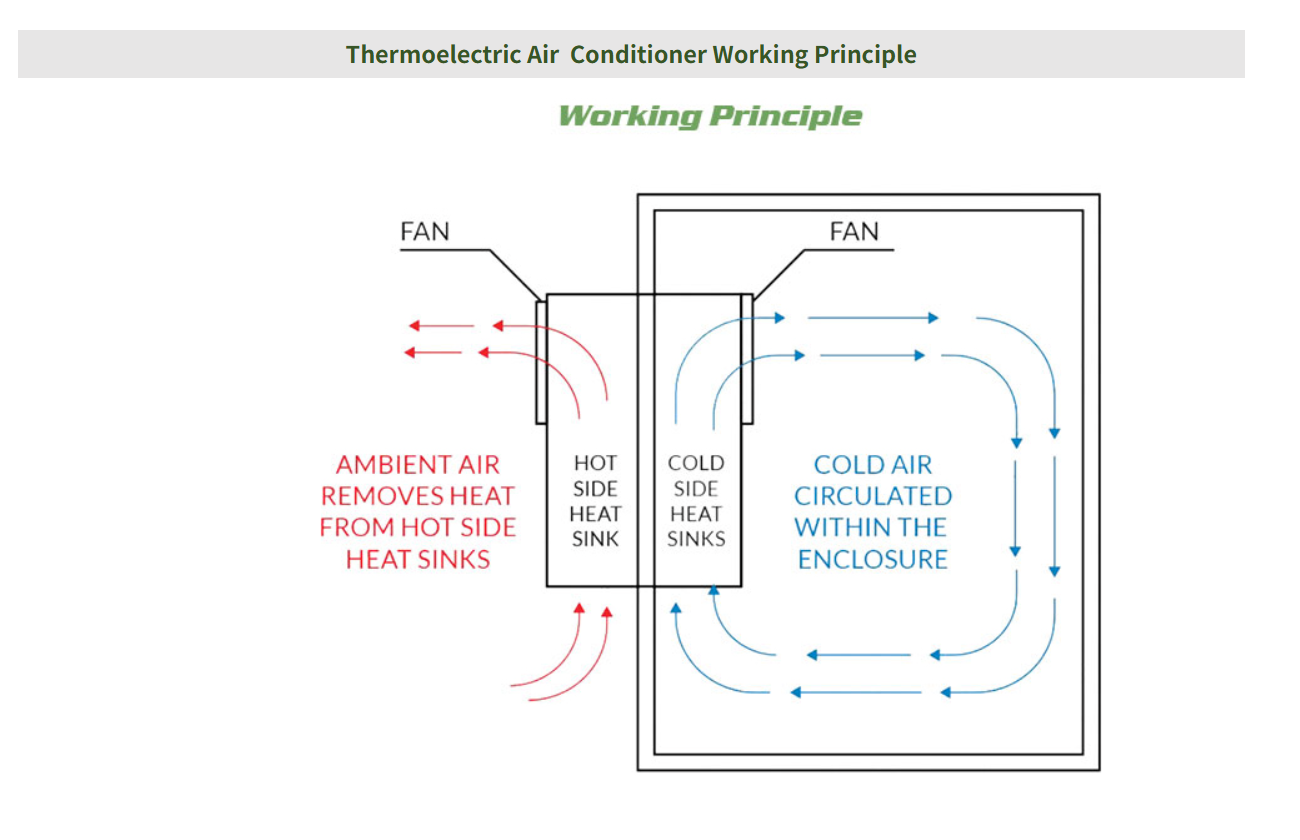

Thermoelectric air conditioners operate by the peltier effect peltier effect(which also goes by the more general name thermoelectric effect).The device has two sides,and when DC current flows through the device,it brings heat from one side to the other,so that one side gets cooler while the other gets hotter.The ' hot' side is attached to a heat sink so that it remains at ambient temperature,while the cool side goes below room temperature.In some applictions,multiple coolers can be cascaded together for lower temperature.
Tips: All specifications for reference only, please confirm with us before placing orders.

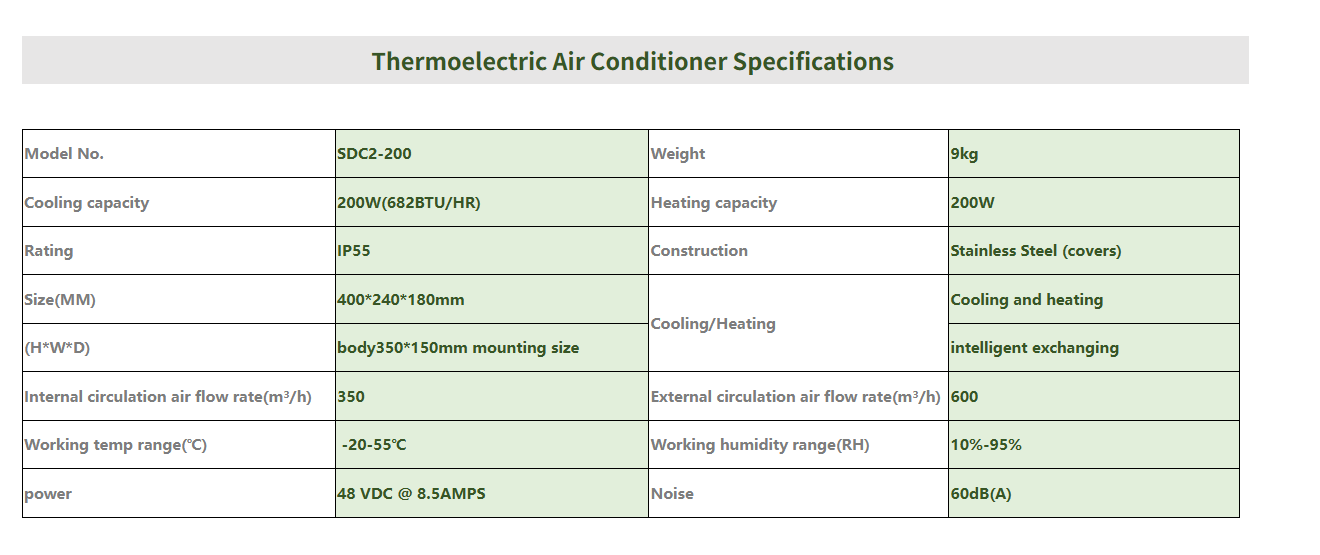

| Model No. SDC2-200 | |
| Weight 9 kg | |
| Cooling capacity 200 W (682 BTU/HR) | |
| Heating capacity 200 W | |
| Rating IP55 | |
| Construction Stainless Steel (covers) | |

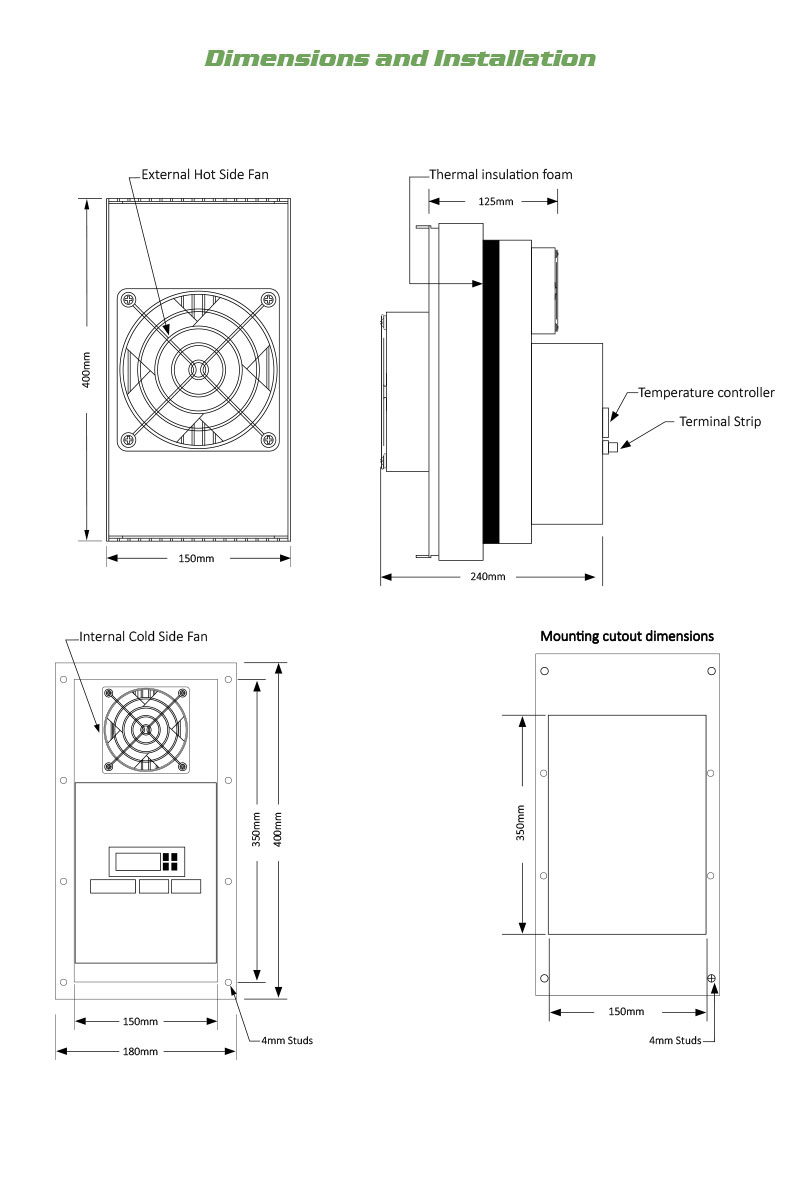

| Size (HWD) 400240180 mm | |
| Mounting size Body | 350*150 mm |
|---|---|
| Cooling/Heating mode Cooling and heating / intelligent exchanging | |
| Internal circulation air flow rate (m³/h) 350 | |
| External circulation air flow rate (m³/h) 600 | |
| Working temperature range (°C) -20–55 °C | |
| Working humidity range (RH) 10%–95% | |
| Power supply 48 VDC @ 8.5 AMPS | |
| Noise level 60 dB(A) | |
This product is suitable for various types of power distribution cabinets, switchgear, box-type substations, and other power equipment monitoring and control applications.
We provide OEM/ODM services and support bulk orders. Welcome to discuss cooperation
