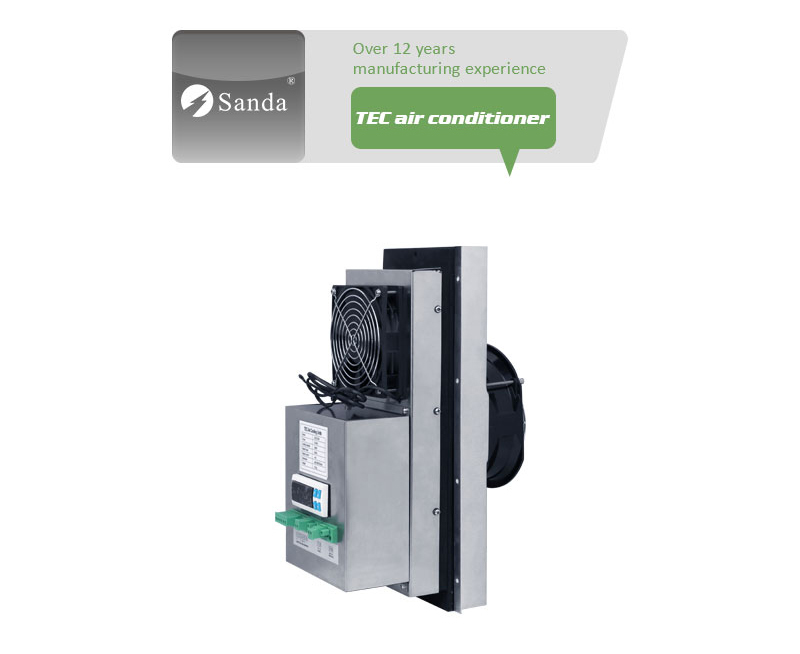

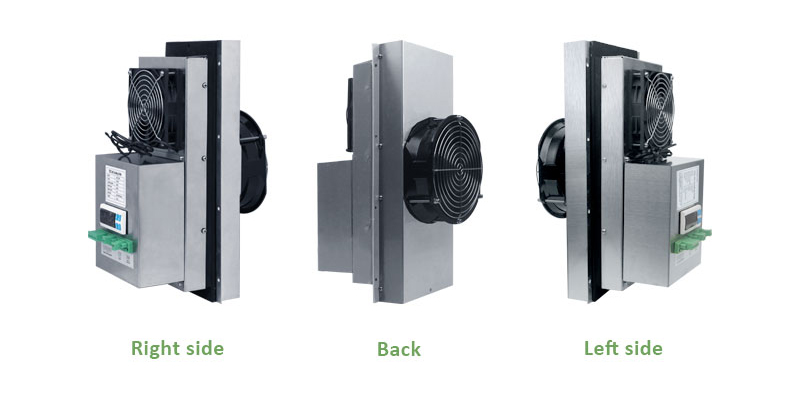

SANDA's 150 W DC solid state TEC air conditioner models are designed to cool your electronic and electrical controls, instruments, computer terminals, printers, telecommunications equipment, surveillance devices, cameras, laser and optical equipment and many other electronics in variety of environments.

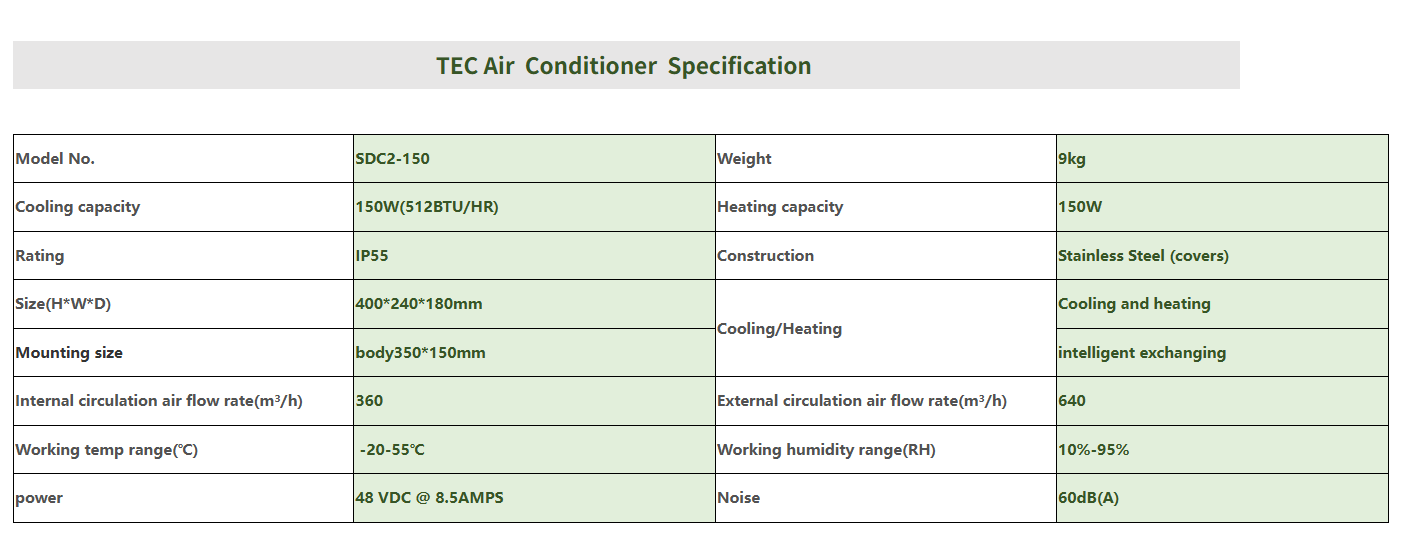

| Model No. SDC2-150 | |
| Weight 9 kg | |
| Cooling capacity 150 W (512 BTU/HR) | |
| Heating capacity 150 W | |
| Rating IP55 | |
| Construction Stainless Steel (covers) | |
| Size (H×W×D) 400×240×180 mm | |
| Cooling/Heating mode Cooling and heating / intelligent exchanging | |

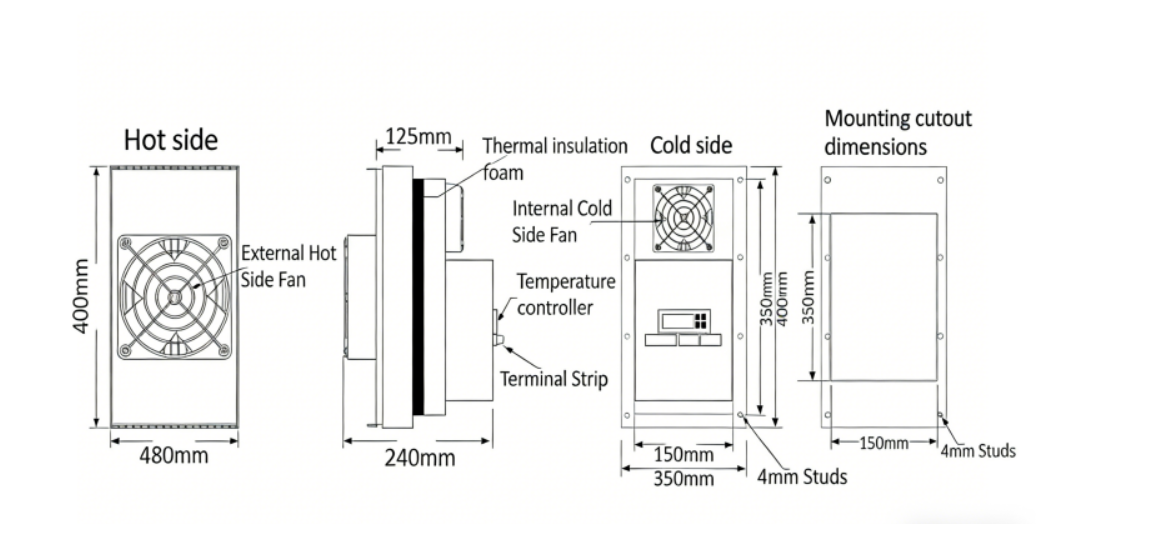

| Mounting size Body | 350×150 mm |
|---|---|
| Internal circulation air flow rate (m³/h) 360 | |
| External circulation air flow rate (m³/h) 640 | |
| Working temperature range (°C) -20 ~ 55 °C | |
| Working humidity range (RH) 10% ~ 95% | |
| Power supply 48 VDC @ 8.5 AMPS | |
| Noise level 60 dB(A) | |
This product is suitable for various types of power distribution cabinets, switchgear, box-type substations, and other power equipment monitoring and control applications.
We provide OEM/ODM services and support bulk orders. Welcome to discuss cooperation
