300W Thermoelectric TEC air conditioner for telecom cabinet -

300W Thermoelectric TEC air conditioner for telecom cabinet

Tec Air Conditioner

SANDA's 300 W DC solid state TEC air conditioner models are designed to cool your electronic and electrical controls, instruments, computer terminals, printers, telecommunications equipment, surveillance devices, cameras, laser and optical equipment and many other electronics in variety of environments. All are available with a variety of options. *Three working modes:cooling & heating & standby. *No compressor, refrigerant or filters *Intelligent built-in controller *Maintenance free design（except fans）

Tips: All specifications for reference only, please confirm with us before placing orders.

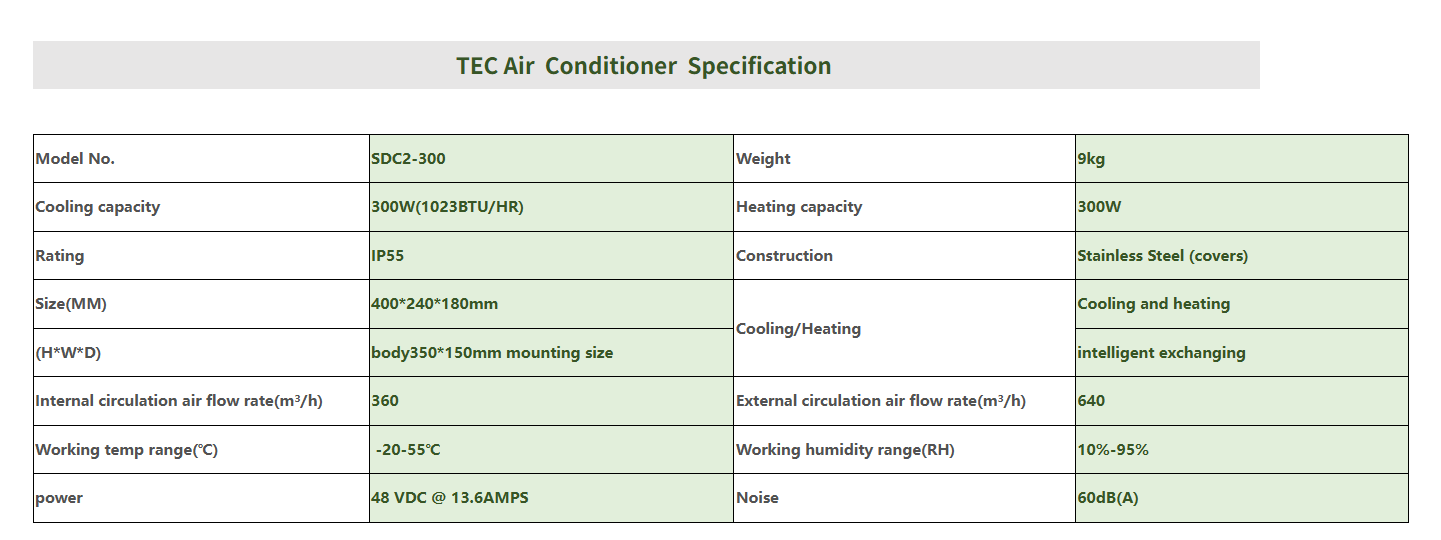

📐 Technical Specifications

Model No. SDC2-300
Weight 9 kg
Cooling capacity 300 W (1023 BTU/HR)
Heating capacity 300 W
Rating IP55
Construction Stainless Steel (covers)

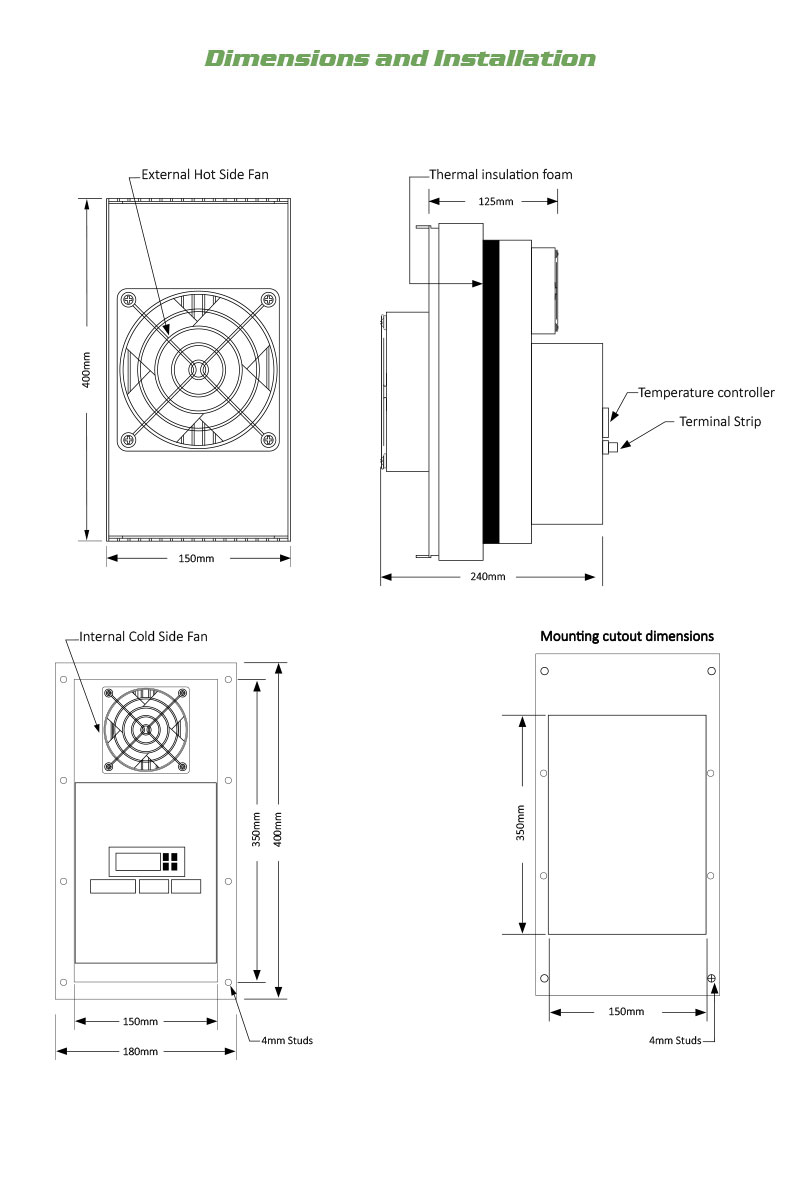

Size (HWD) 400240180 mm
Mounting size Body	350*150 mm
Cooling/Heating mode Cooling and heating / intelligent exchanging
Internal circulation air flow rate (m³/h) 360
External circulation air flow rate (m³/h) 640
Working temperature range (°C) -20–55 °C
Working humidity range (RH) 10%–95%
Power 48 VDC @ 13.6 AMPS
Noise 60 dB(A)

⭐ Product Features

Extremely reliable solid state construction with long lifespan
Maintenance free design with no moving components (other than fans)
Compact size, lightweight, convenient to install and operate
Construction (Type 304 stainless steel) for indoor or outdoor use
Standard models to 55°C (High ambient models avail.)
Flush-mount or recessed-mount installation
Recommended for vertical mounting only

🏭 Application Scenarios

This product is suitable for various types of power distribution cabinets, switchgear, box-type substations, and other power equipment monitoring and control applications.

📋 Certifications

No certifications information available for this product.
