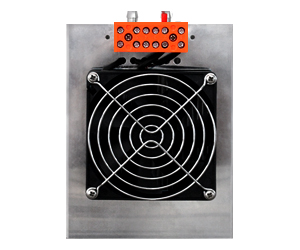

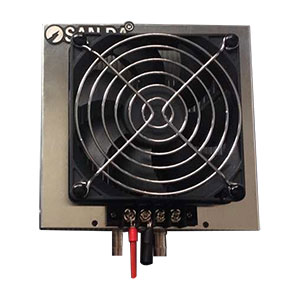

SANDA's 40W thermoelectric Liquid to Air cooler series used to cool or heat a liquid or gas flowing through a heat sink. Thermoelectric liquid heat sink is designed for a recycling system. The heat is absorbed by the liquid heat sink, pumped through the thermoelectric modules, and then dissipated to the air by an air heat sink.
SANDA's 40 W thermoelectric liquid to air cooler used to cool or heat a liquid or gas flowing through a heat sink. Thermoelectric liquid heat sink is designed for a recycling system. The heat is absorbed by the liquid heat sink, pumped through the thermoelectric modules, and then dissipated to the air by an air heat sink.

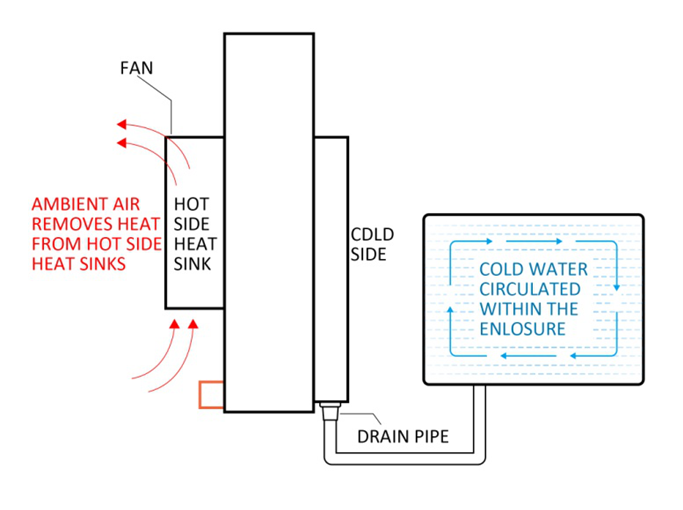

Peltier Liquid to Air Cooler Working Principle
Tips: All specifications for reference only, please confirm with us before placing orders.

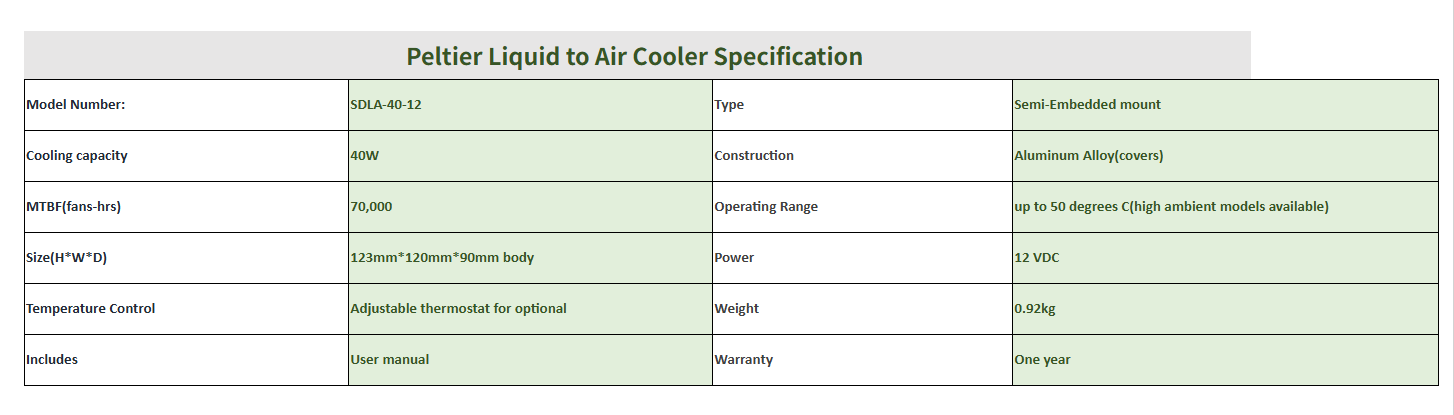

| Parameter | Specification |
|---|---|
| Model Number | SDLA-40-12 |
| Type | Semi-Embedded mount |
| Cooling capacity | 40W |
| Construction | Aluminum Alloy (covers) |
| MTBF (fans-hrs) | 70,000 |
| Operating Range | up to 50 degrees C (high ambient models available) |

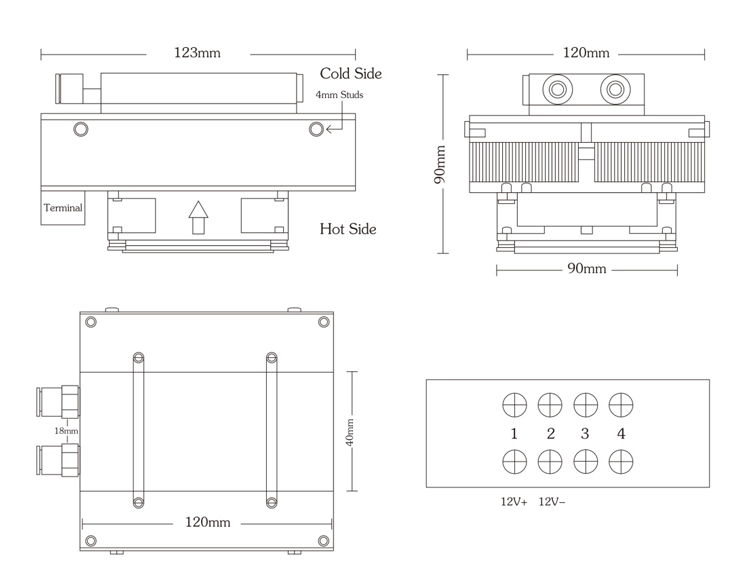

| Size (HWD) | 123mm120mm90mm body |
| Power | 12 VDC |
| Temperature Control | Adjustable thermostat for optional |
| Weight | 0.92kg |
| Includes | User manual |
| Warranty | One year |
This product is suitable for various types of power distribution cabinets, switchgear, box-type substations, and other power equipment monitoring and control applications.
We provide OEM/ODM services and support bulk orders. Welcome to discuss cooperation
